HIGH-PERFORMANCE SEALS FOR LONG-LASTING RELIABILITY -- PROVIDE COMPLETE PROTECTION FOR YOUR JACK, KEEPING EVERY LIFT SAFE AND SECURE
Product Attributes
Colors: Black
Weight: 0.67 oz
Material: NBR, Nylon

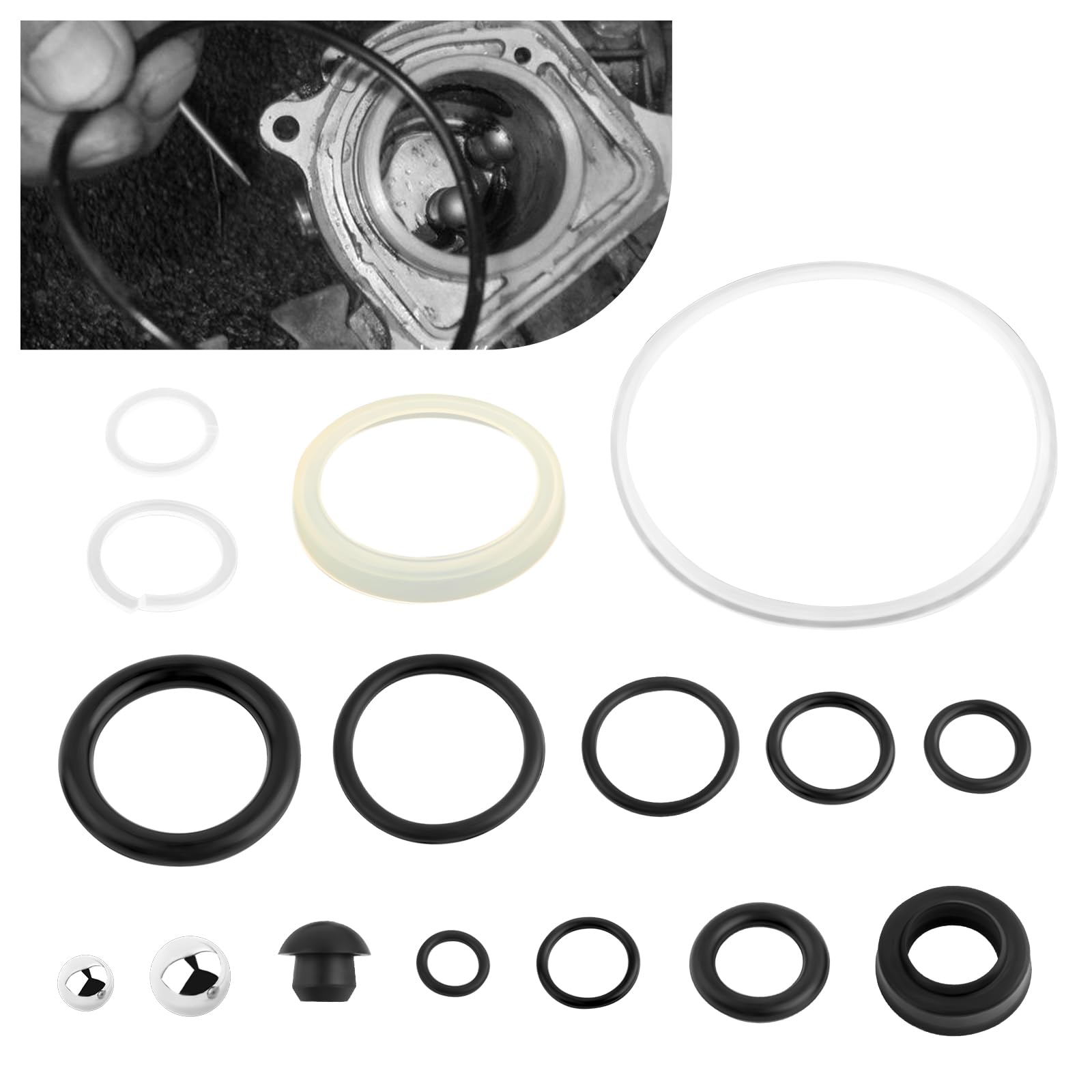

Packaging: 16-Plunger Oil Seal*2, 13-Plunger Oil Seal*2, Base Pad*1, Oil Plug*1, Safety Ring*1, Bowl Seal*1, Nylon Bowl*1, Oil Seal at Bleeder*1, Top Cap Ring*1, 16 Thick Ring*1, Dust Cap*1, Washer*1, Steel Ball*2

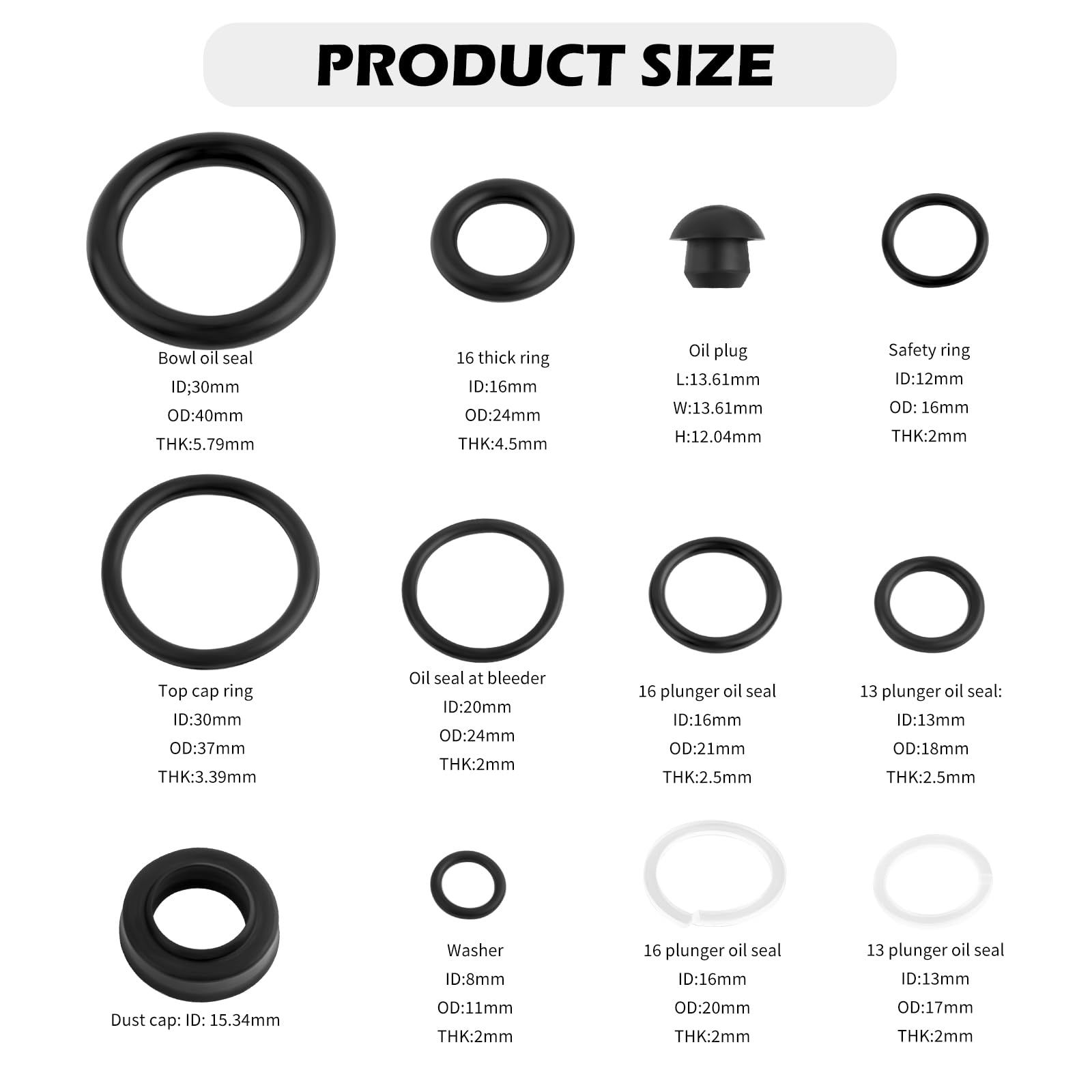

Product Size
16 plunger oil seal: 16*21*2.5mm/16*20*2mm
13 plunger oil seal: 13*18*2.5mm/13*17*2mm

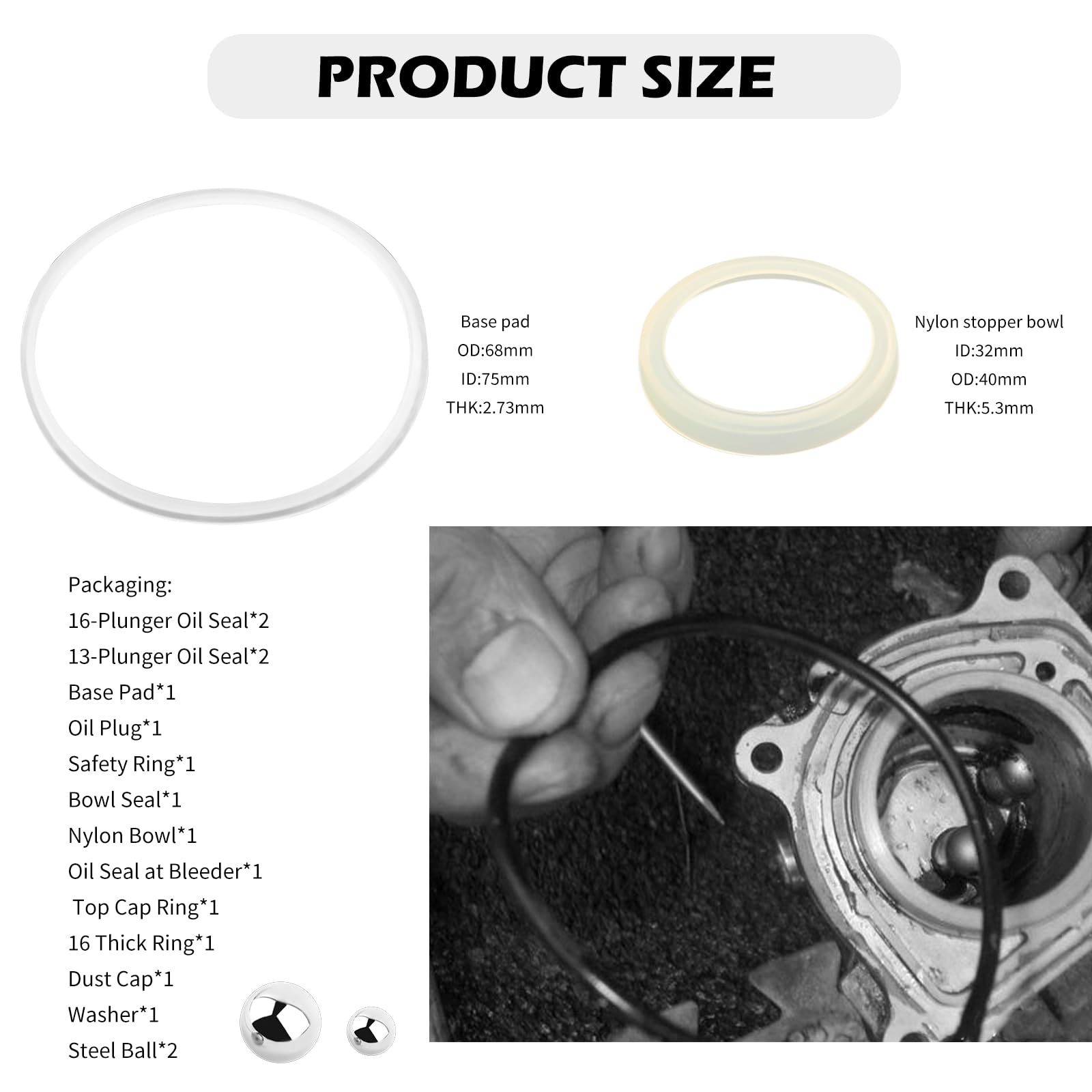

Base pad: 68*75*2.73mm
Safety ring: 12*16*2mm
Bowl oil seal: 30*40*5.79mm
Nylon stopper bowl: 32*40*5.3mm
Oil seal at bleeder: 20*24*2mm
Top cap ring: 30*37*3.39mm
16 thick ring: 16*24*4.5mm
(The above size data for the inner diameter * outer diameter * thickness)
Oil plug: 13.61*13.61*12.04mm
Dust cap: ID: 15.34mm
Product Functions
Our jack repair kit can be adapted to 3 tons of horizontal jacks. Have you encountered hydraulic fluid leaks, insufficient pressure or failure to maintain lift while using the jack? Replacing old parts can effectively avoid hydraulic fluid spills and keep the pressure in the hydraulic system stable
13-plunger oil seal/16-plunger oil seal: To avoid hydraulic oil spillage from the gap between the plunger and the cylinder, installed in the contact part of the plunger and the cylinder
Oil plug: Closes the hydraulic oil injection port to avoid spillage of hydraulic oil, installed at the oil injection port of the jack
Nylon retaining bowl: Provides a cushioning and guiding effect to reduce the friction and wear of the plunger in the process of movement, installed at the top or bottom of the plunger, and the part in contact with the cylinder body
Top cap ring: Fixes and seals the top of the plunger, installed on the top of the plunger and connected with the top cap
Bleeder seal: Avoids hydraulic oil spillage from the bleeder valve and is installed at the interface of the bleeder valve
Due to the manual measurement, the error is within 1-3mm is normal
- Solving Hydraulic Fluid Spills: Are you experiencing hydraulic fluid spills or problems with your jack that keep it from lifting? Try replacing worn parts with our new Jack Seal Kit to restore your jack to its original lifting performance
- Oil Resistant Material: The O-rings in the floor jack repair kit are constructed of butyl rubber that maintains its physical properties when in contact with hydraulic fluid and will not soften from the oil, thus maintaining a good seal
- Full Kit: Includes a total of 16 fittings, including plunger oil seals, oil plugs, nylon retaining bowls, cap rings and more. The oil seal keeps oil from spilling out, and the cap ring seals the plunger and maintains a seal with the cylinder
- Essential Car Accessories: The jack repair kit is capable of adapting a 3-ton jack. After the replacement is completed, it is recommended to carry out a short test to keep the jack lifting and lowering functioning properly to avoid safety issues
- Replacement Instructions: Remove the cover of the jack to expose the hydraulic system. Remove the old gasket and other parts and clean the parts with a cloth. Install the new gasket and other parts in their original position and, finally, close the cover
